ECS Component Diagrams

Version 1

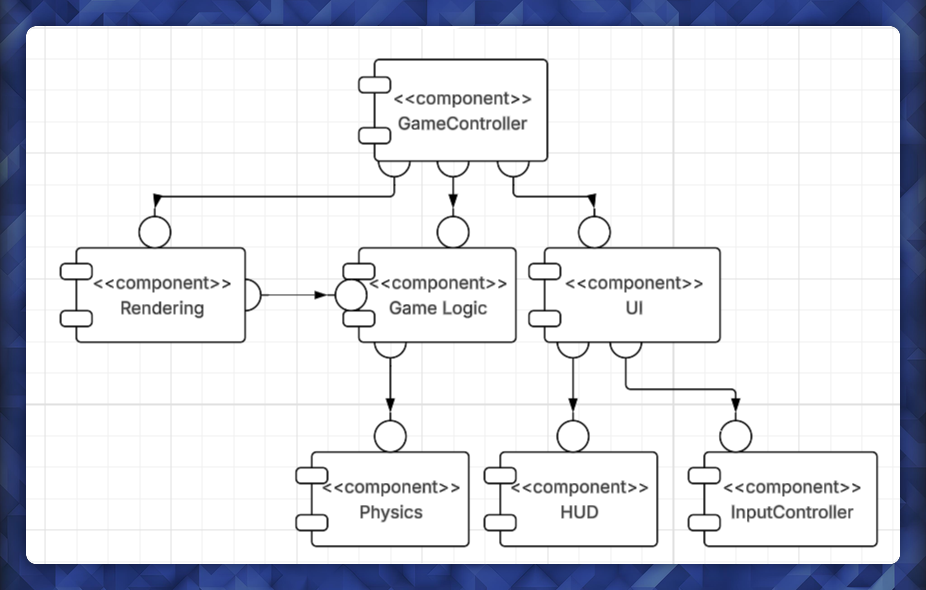

ECS Component Diagram

Version 2

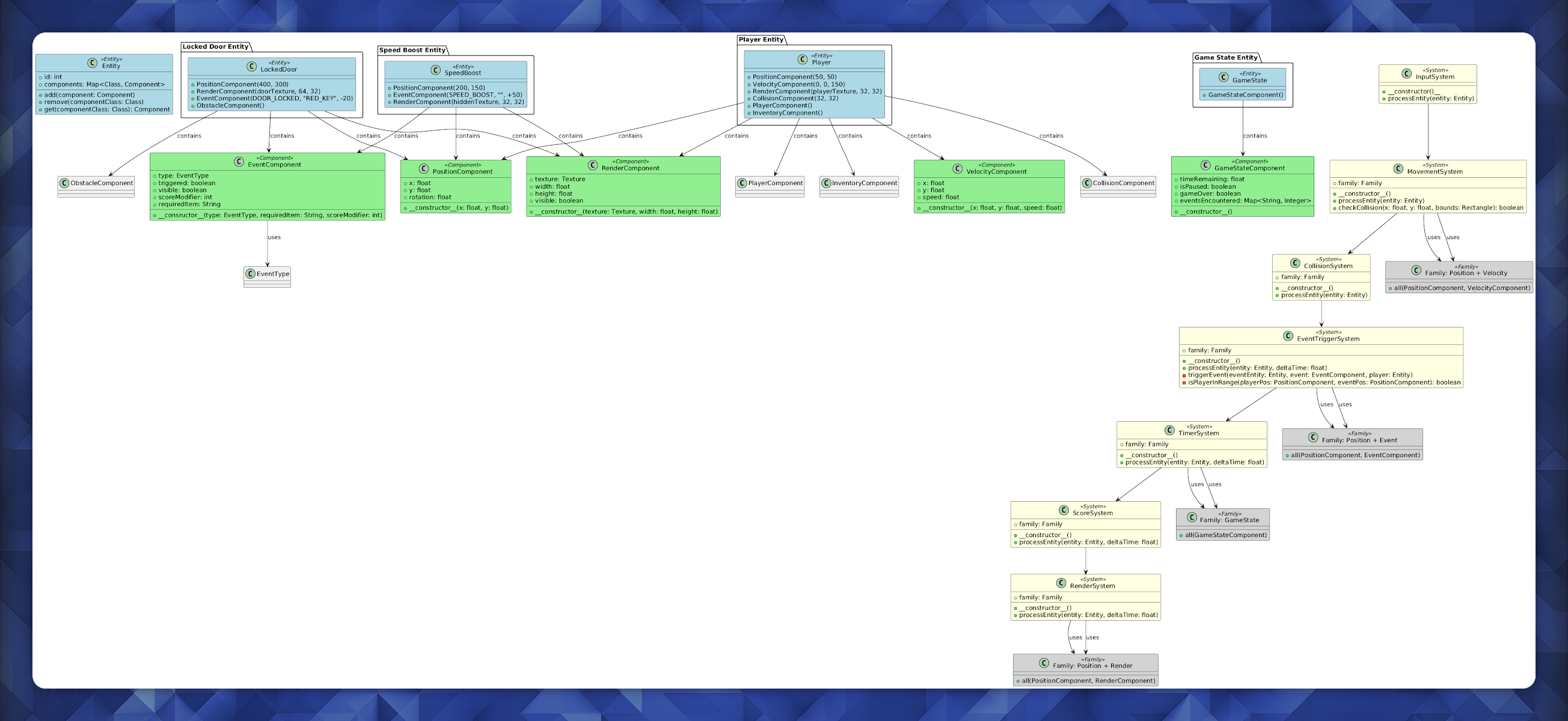

ECS Component Diagram

UML Use Case Diagrams

Use Case 1

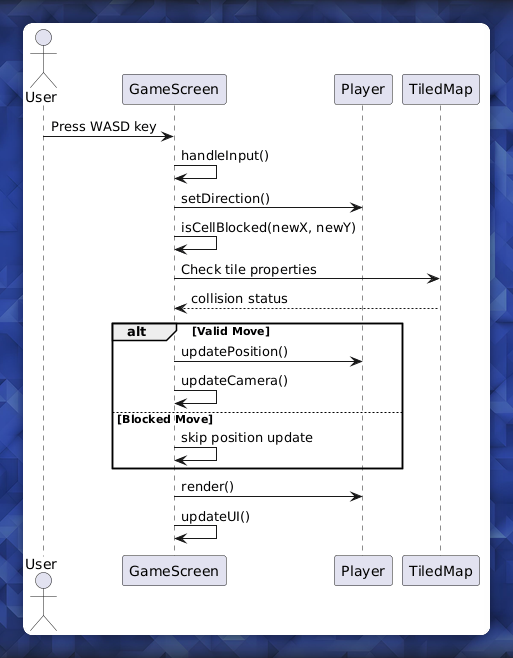

UML Diagram for Usecase 1

Use Case 2

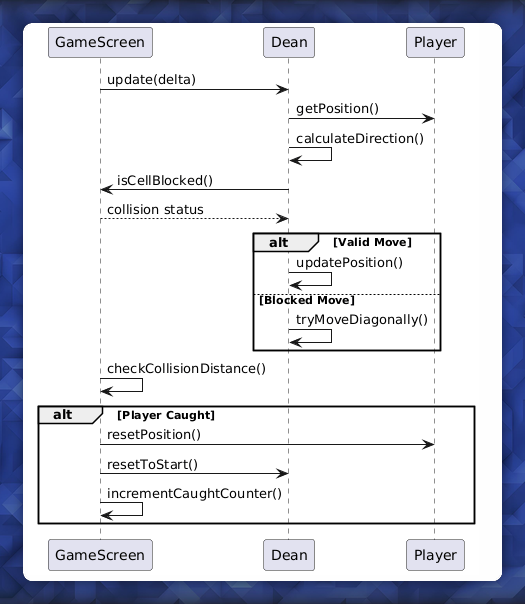

UML Diagram for Usecase 2

Use Case 3

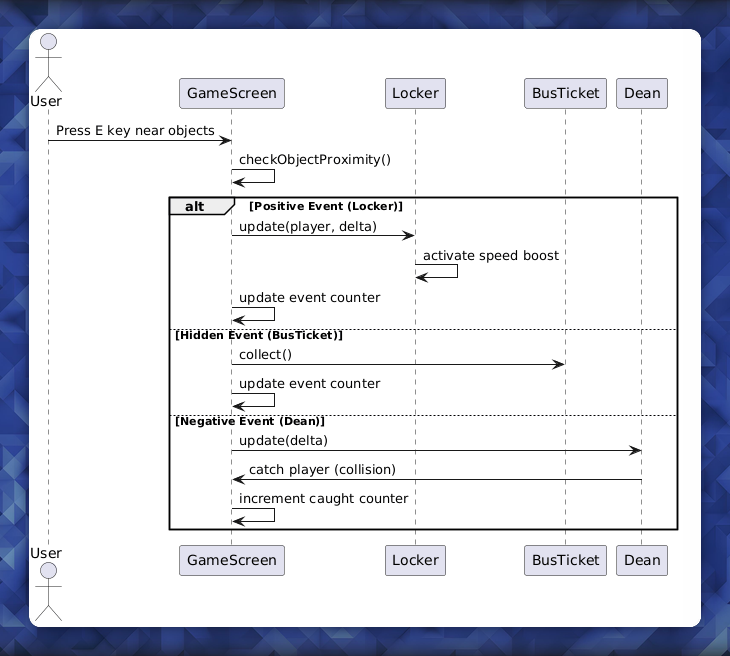

UML Diagram for Usecase 3

CRC Cards Table

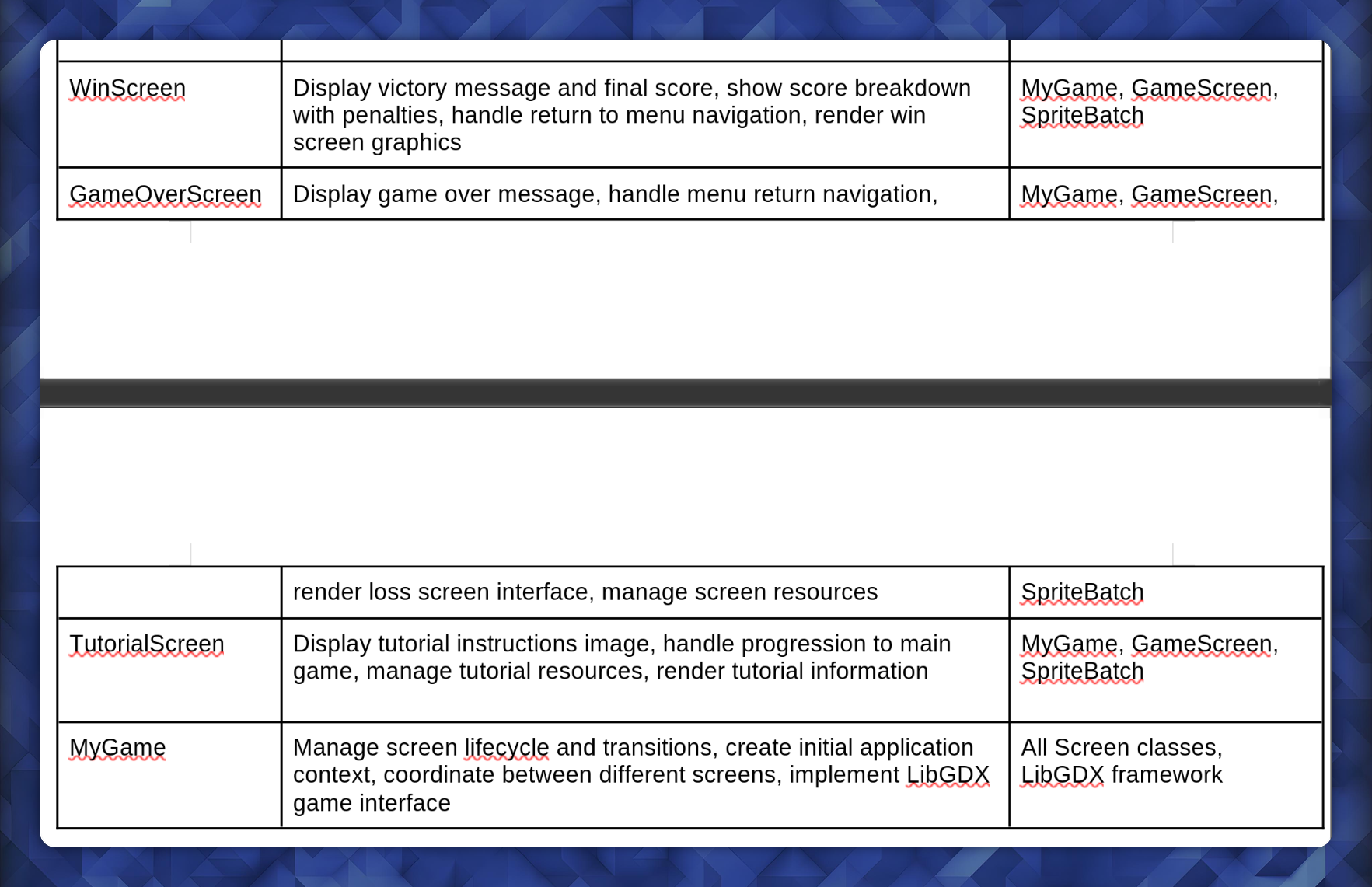

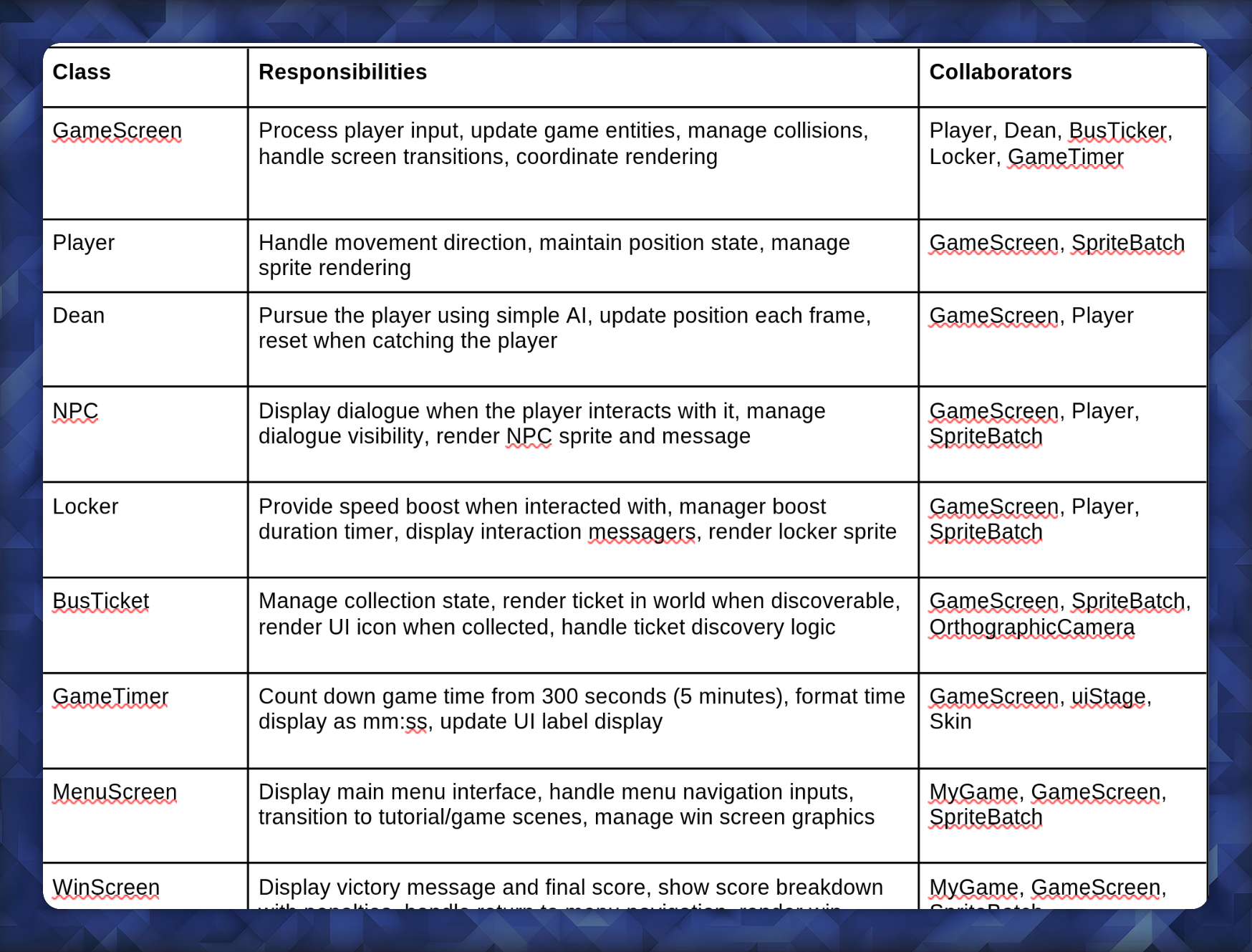

CRC Table CRC Table

OOP Main Components

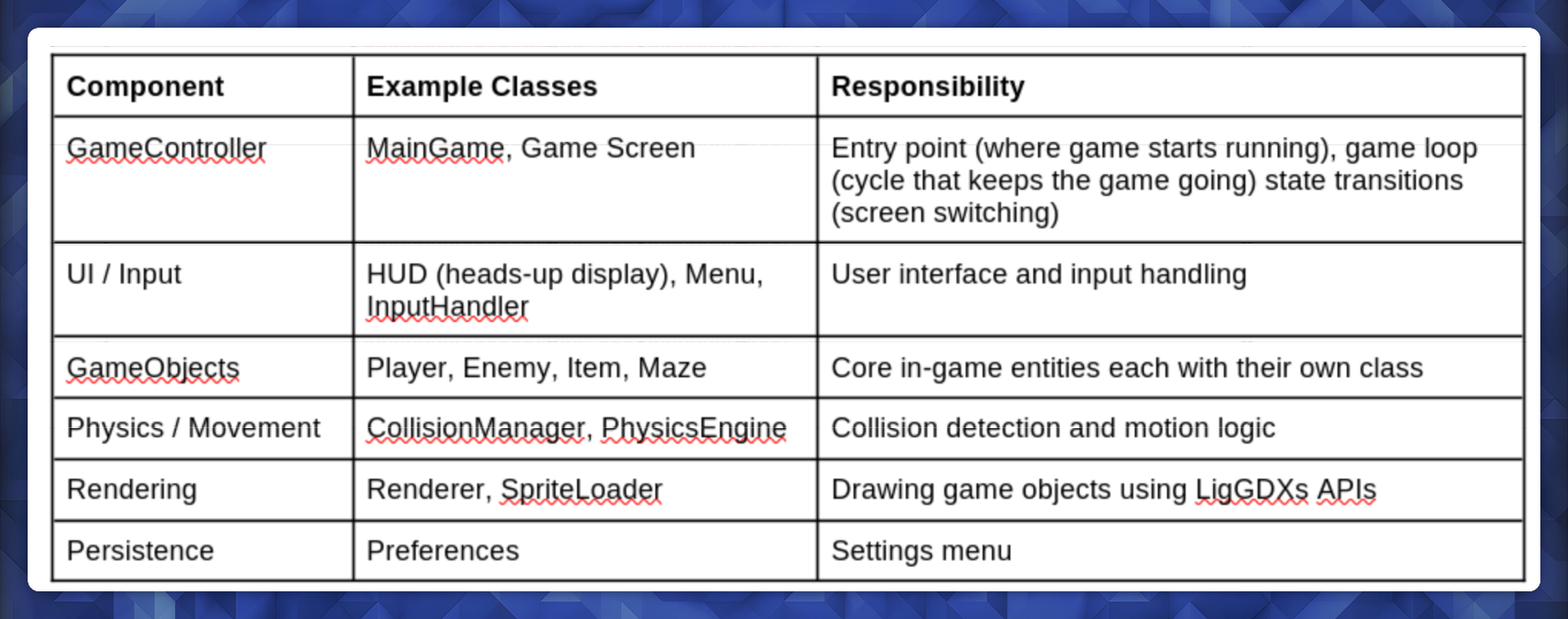

OOP Main Components

OOP Component Diagrams

Version 1

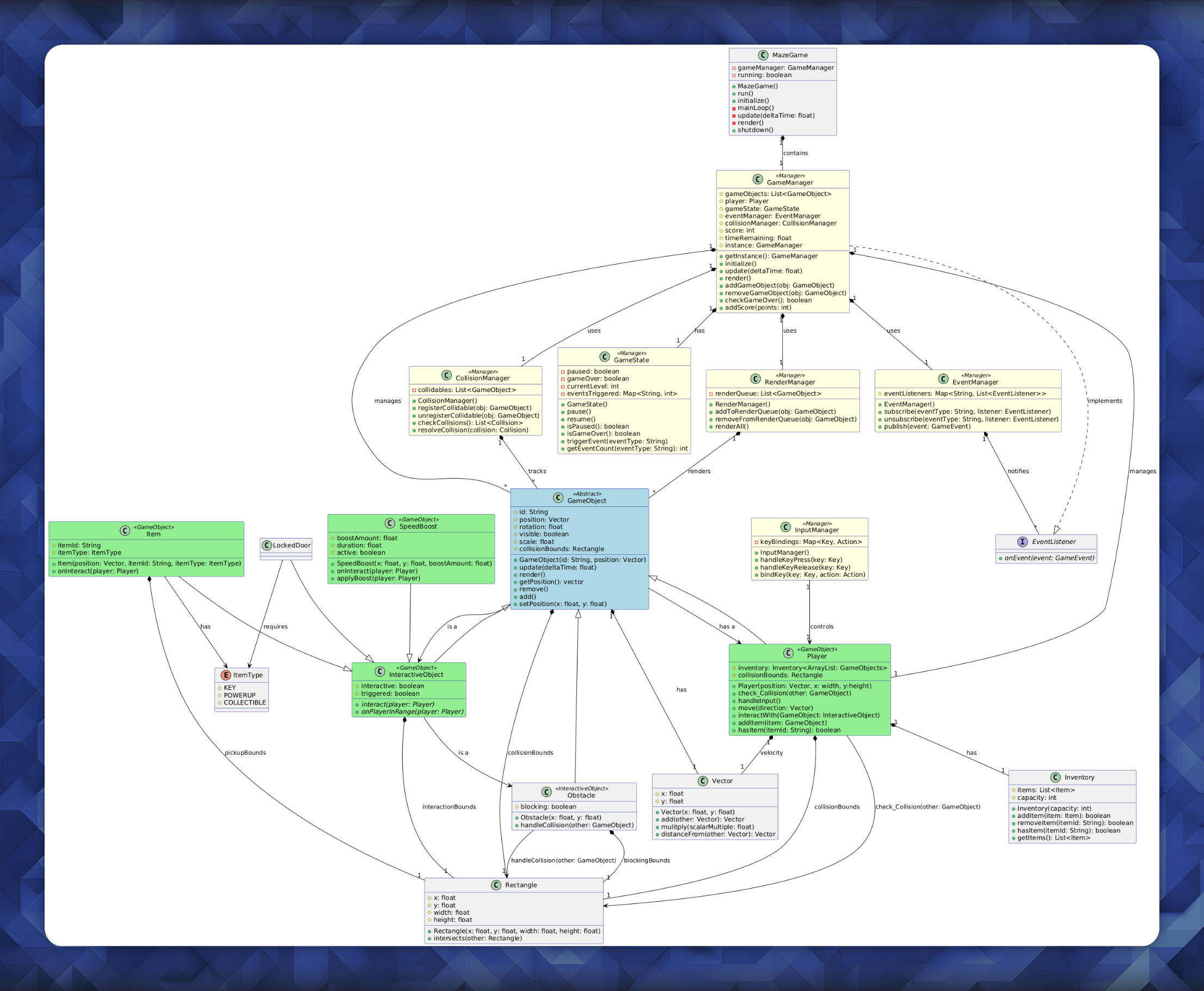

OOP Diagram Version 1

Version 2

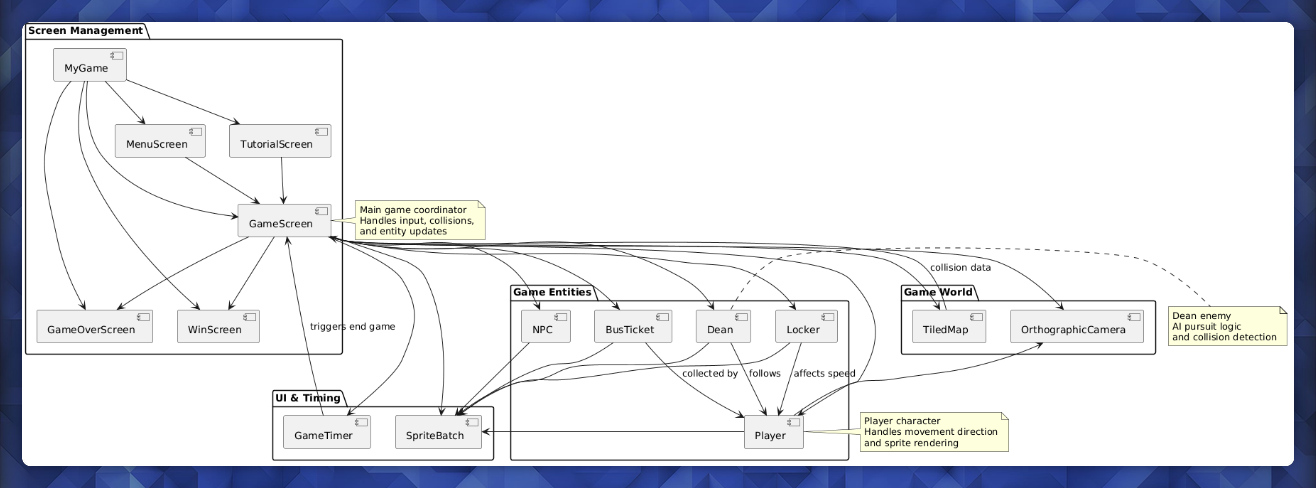

OOP Diagram Version 2
